Air Displacement: 15.8cfm(447L/min).

Maximum Free Air Delivery: 11.5cfm(326L/min).

Maximum Pressure: 145psi(10bar).

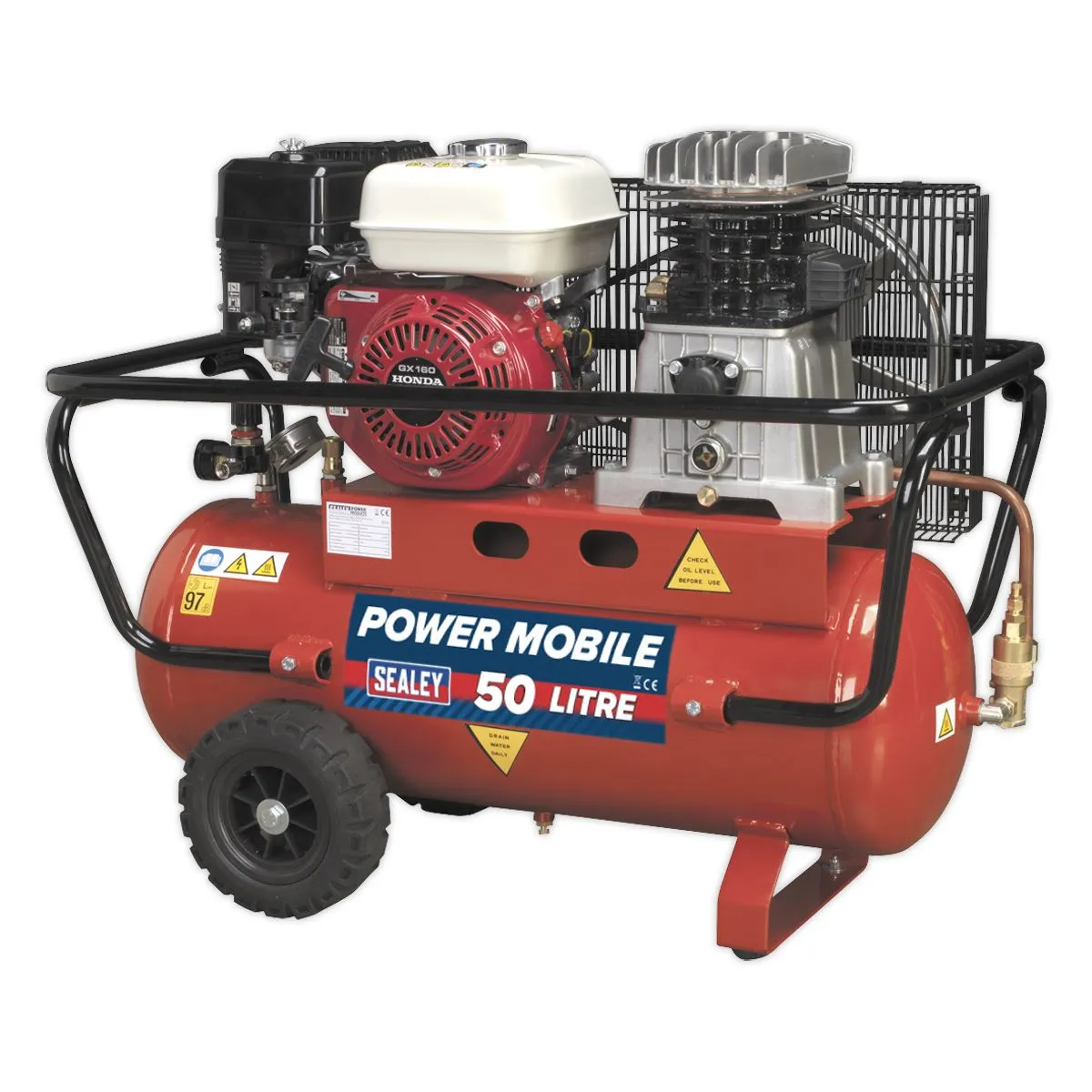

Fully mobile compressor with Honda GX160 5.5hp power unit coupled to heavy-duty, twin piston, cast iron pump.

Fitted with heavy-duty rubber transport wheels and protected by 360° roll cage.

Heavy-duty drive guard protects belt and flywheel that is designed to also force air over the pump to aid cooling.

Supplied with full CE certification, test certificates and operating/maintenance manual.

Features twin gauges and air outlet regulator.

Runs on unleaded fuel.

This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.

Specification:

• Model No SA5055
• Air Displacement cfm(L/min): 15.8(447)
• Brand: Sealey
• Maximum Free Air Delivery cfm(L/min): 11.5(326)
• Maximum Pressure: 145psi(10bar)
• Motor Output: 5.5hp
• Motor Type: Honda GX160 Petrol
• Nett Weight: 67kg
• Noise Level: 76dB(A)
• Oil Capacity: 0.72L
• Outlet: 1/4"BSP & 3/8"BSP Female Tap
• Receiver Capacity: 50L
• Size (W x D x H): 970 x 470 x 760mm

• Instructions:
• Material Safety Data Sheet:
• Parts Diagram:
