Air Displacement: 10.7cfm(303L/min).

Maximum Free Air Delivery: 7.8cfm(220L/min).

Maximum Pressure: 145psi(10bar).

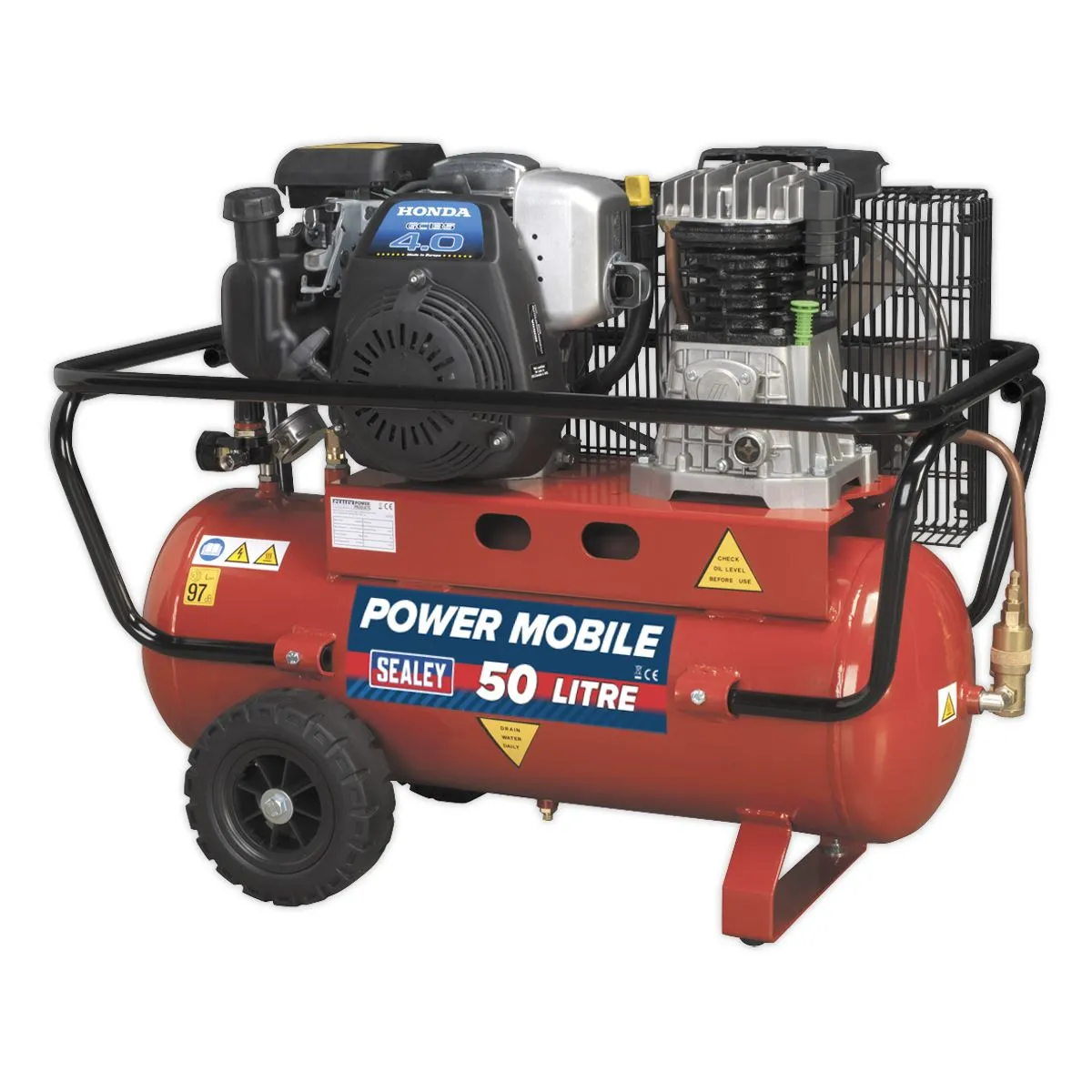

Fully mobile compressor with Honda GC135 4hp unit coupled to a heavy-duty, twin piston, cast iron pump.

Fitted with heavy-duty rubber transport wheels, protected by 360° roll cage.

Heavy-duty drive guard protects belt and flywheel that is designed to also force air over the pump to aid cooling.

Supplied with full CE certification, test certificates and operating/maintenance manual.

Features twin gauges and air outlet regulator.

Runs on unleaded fuel.

Specification:

• Model No SA5040
• Air Displacement cfm(L/min): 10.7(303)
• Brand: Sealey
• Maximum Free Air Delivery cfm(L/min): 7.8(220)
• Maximum Pressure: 145psi(10bar)
• Motor Output: 4hp
• Motor Type: Honda GC135 Petrol
• Nett Weight: 63kg
• Noise Level: 76dB(A)
• Oil Capacity: 0.45L
• Outlet: 1/4"BSP & 3/8"BSP Female Tap
• Receiver Capacity: 50L
• Size (W x D x H): 970 x 470 x 730mm

• Instructions:
• Material Safety Data Sheet:
• Parts Diagram:
