Please contact us ( ) or use the form above for price quote.
*** Worldwide drop-ship directly from factory ***
Please include information like your intended voltage (or hydraulic type) and size of your chain.

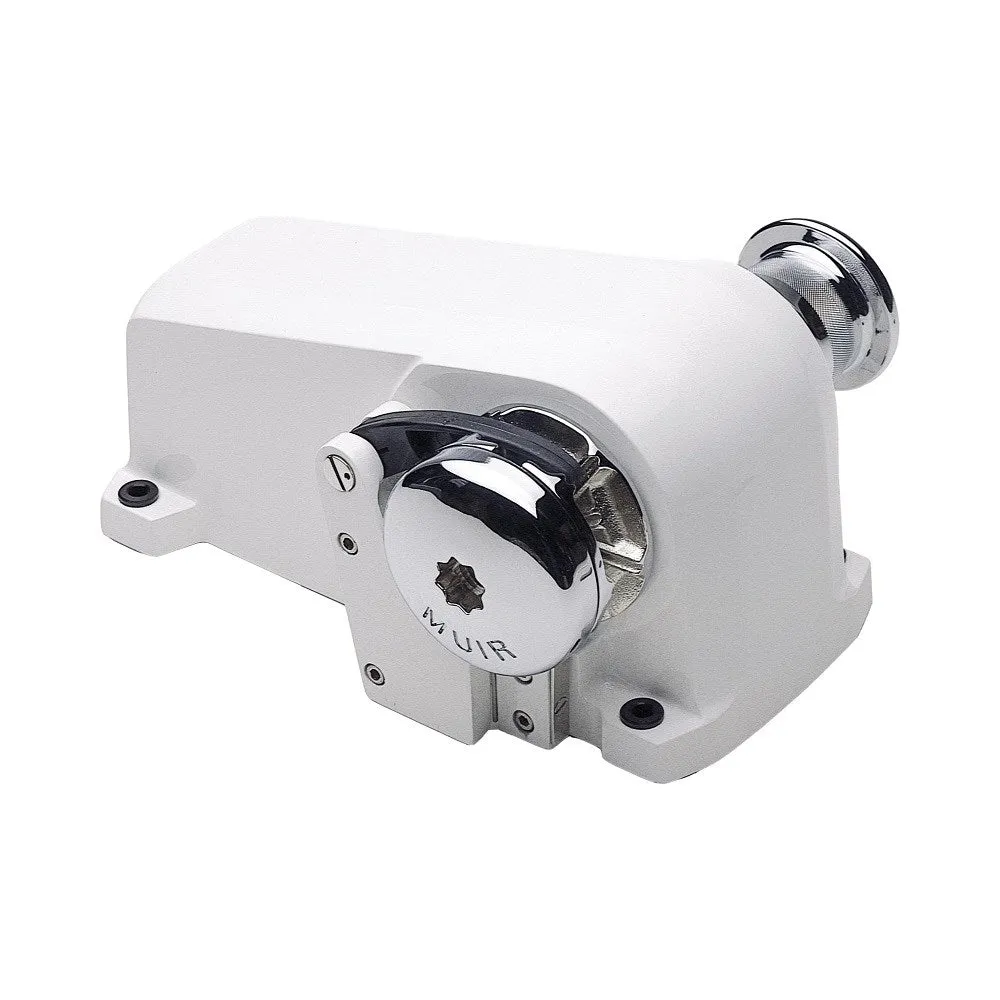

Muir HR700 / HFF700 Compact Horizontal Windlass
- HR700 Power Up / Power Down, with manual release
- Rope chain combination gypsy for rope & chain combination or chain only
- Rope Chain Management System (RCMS)
- Heavy duty dual direction motor in 12 Vdc & 24 Vdc
- Durable marine grade white gloss finish alloy housing
- Fully enclosed motor & gearbox
- Independent gypsy and capstan operation
- Luxury chromed marine grade bronze running gear
- Stainless steel drive shaft
- Cone clutch / brake
- Stainless steel mounting studs
- Shaft seal
- Clutch release handle
- Installation/Operation booklet
Vessel Length | 8 - 11 m (26 - 35 ft) |
Power Supply | 12 Vdc |
Motor | 600 W |
Max Load | 318 kg (700 lb) |
Work Load | 57 kg (125 lb) |
Max Line Speed | 25 m / min (80 ft / min) |
Chain Size | 6 - 8 mm (1/4 - 5/16”) |
Rope Size | 12 - 14 mm (1/2 - 9/16” |
Net Weight | 12 kg (26 lb) |
