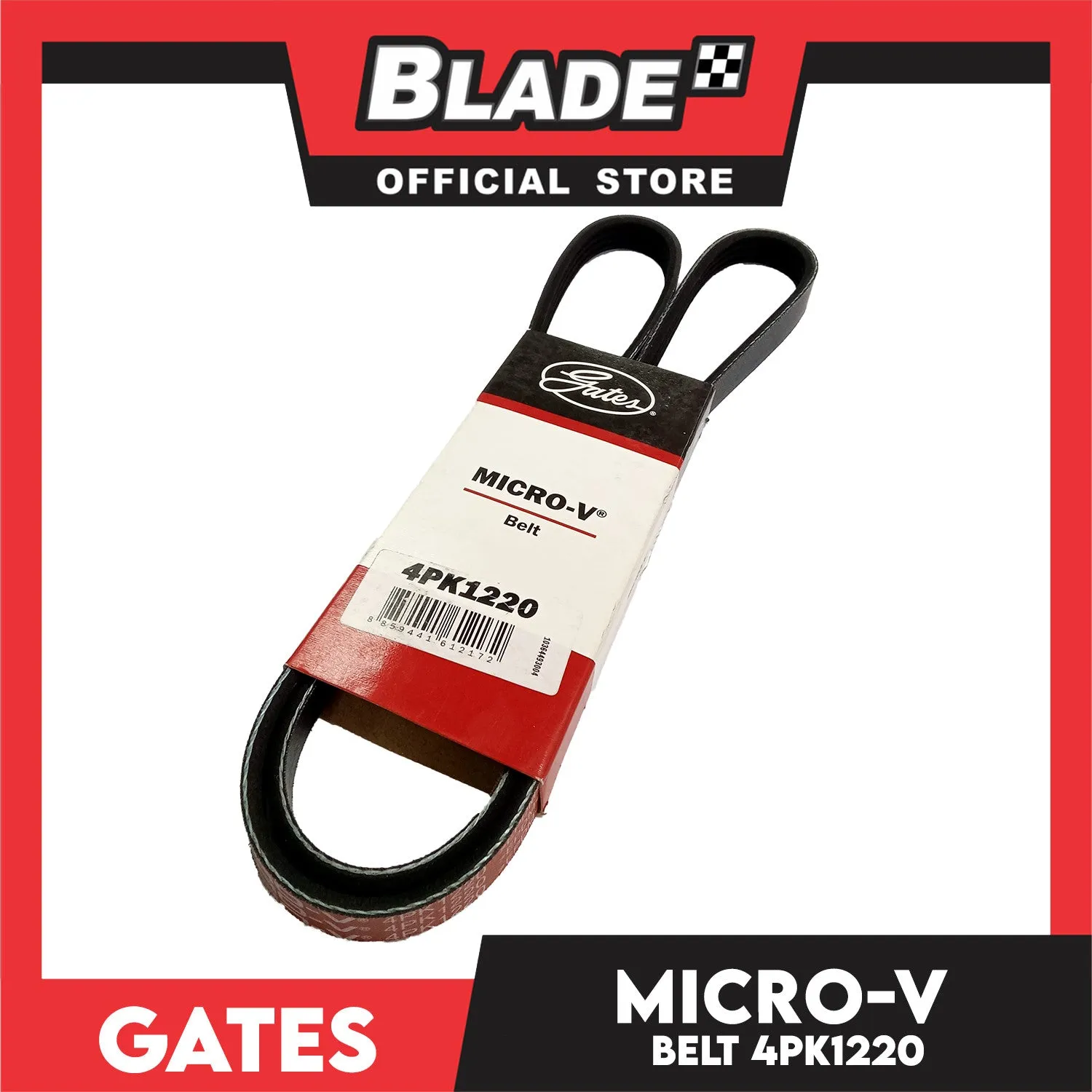

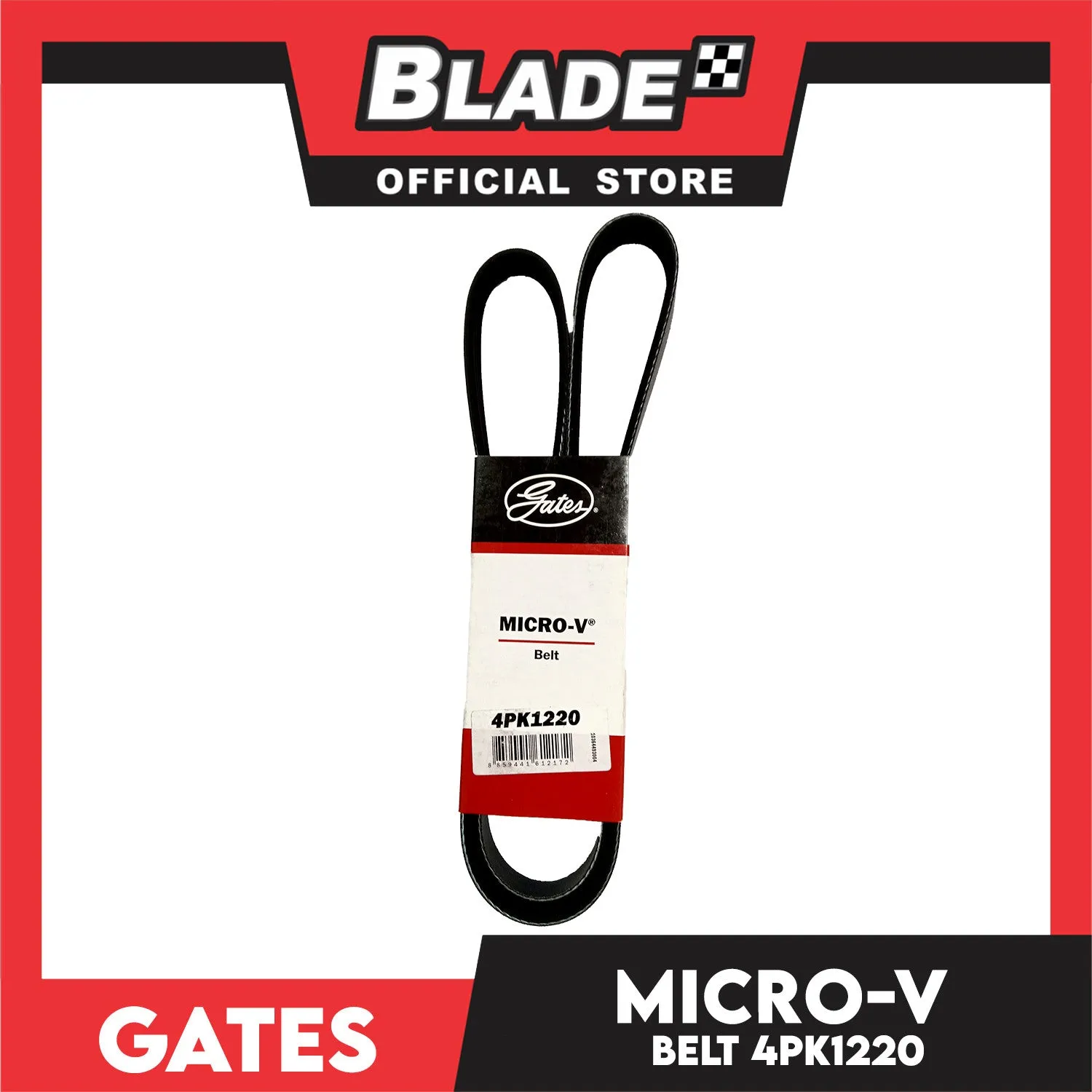

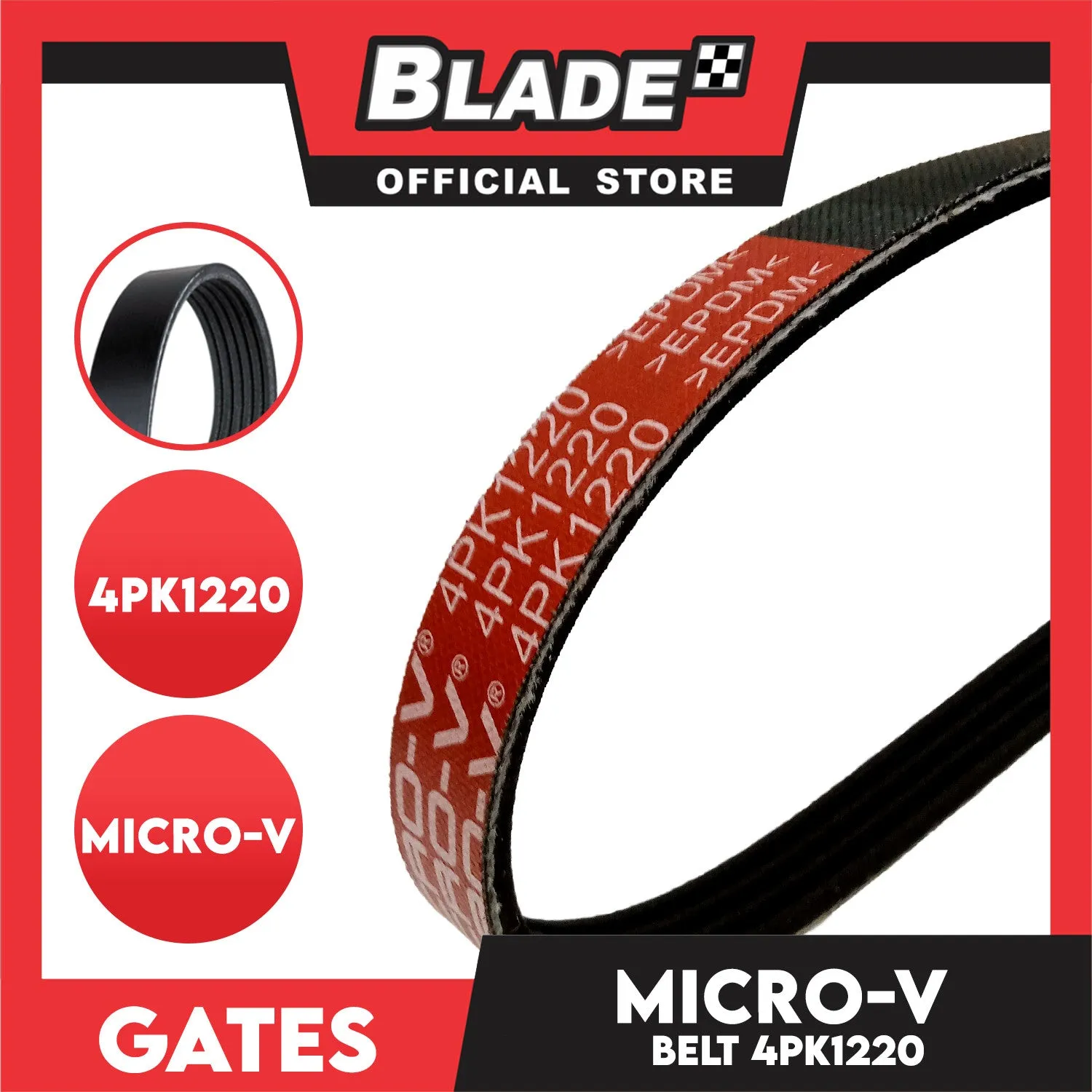

- Micro-V
- Part No: 4PK1220
- Material: EPDM (ethylene propylene diene Monomer (M-class) rubber)
- Colour: Black
- Number of ribs: 4
- Width (mm): 14
- Length (mm): 1220
- Qty: 1pc
- Lasts Longer - Lasts up to 50% longer than any retail belt on the market.
- Ultimate Dependability - Eliminates belt noise and premature failure by utilising materials like Aramid Fibre found in bullet proof vests and crack and heat resistant EPDM materials.
- Improves Component Performance – Compensates for worn and misaligned components in high kilometre vehicles through superior stability.
- Suitable with:
- TOYOTA ALTEZZA
- Petrol 2L/147KW 2.0 VVTi (SXE10) 3S-GE _E1_ Rear-Wheel Drive Sedan (02/99-11/05)
- Petrol 2L/154KW 2.0 VVTi (SXE10) 3S-GE _E1_ Rear-Wheel Drive Sedan (02/99-11/05)
- VIOS
- Petrol 1.5L/80KW 1.5 (NCP93) 1NZ-FE _P9_ Front-Wheel Drive Sedan (01/06-12/13)
- YARIS
- Petrol 1.5L/80KW 1.5 (NCP91_) 1NZ-FE _P9_ Front-Wheel Drive Hatchback (11/05-12/11)
- YARIS / VIOS
- Petrol 1.3L/63KW 1.3 (NCP92_) 2NZ-FE _P9_ Front-Wheel Drive Sedan (01/06-04/13)
- Caution:
- Before any service work on the belt is begun to be sure that the motor or engine is switched off and cannot be started.
- Important:
- Check for worn tensioners and idler pulleys. This is the best time to replace these part these parts if needed.
- Belt Removal:
- Loosen adjustment or pivot bolts.
- Move adjustment unit to minimum position.
- Remove belt.
- Belt Installation:
- Place new belt loosely on pulleys. Do not pry onto pulleys.
- Tension belt according to manufacturer's instruction.
- Run drive 5 minutes and retension. Belts must be tight enough to prevent slipping when drive is fully loaded.
