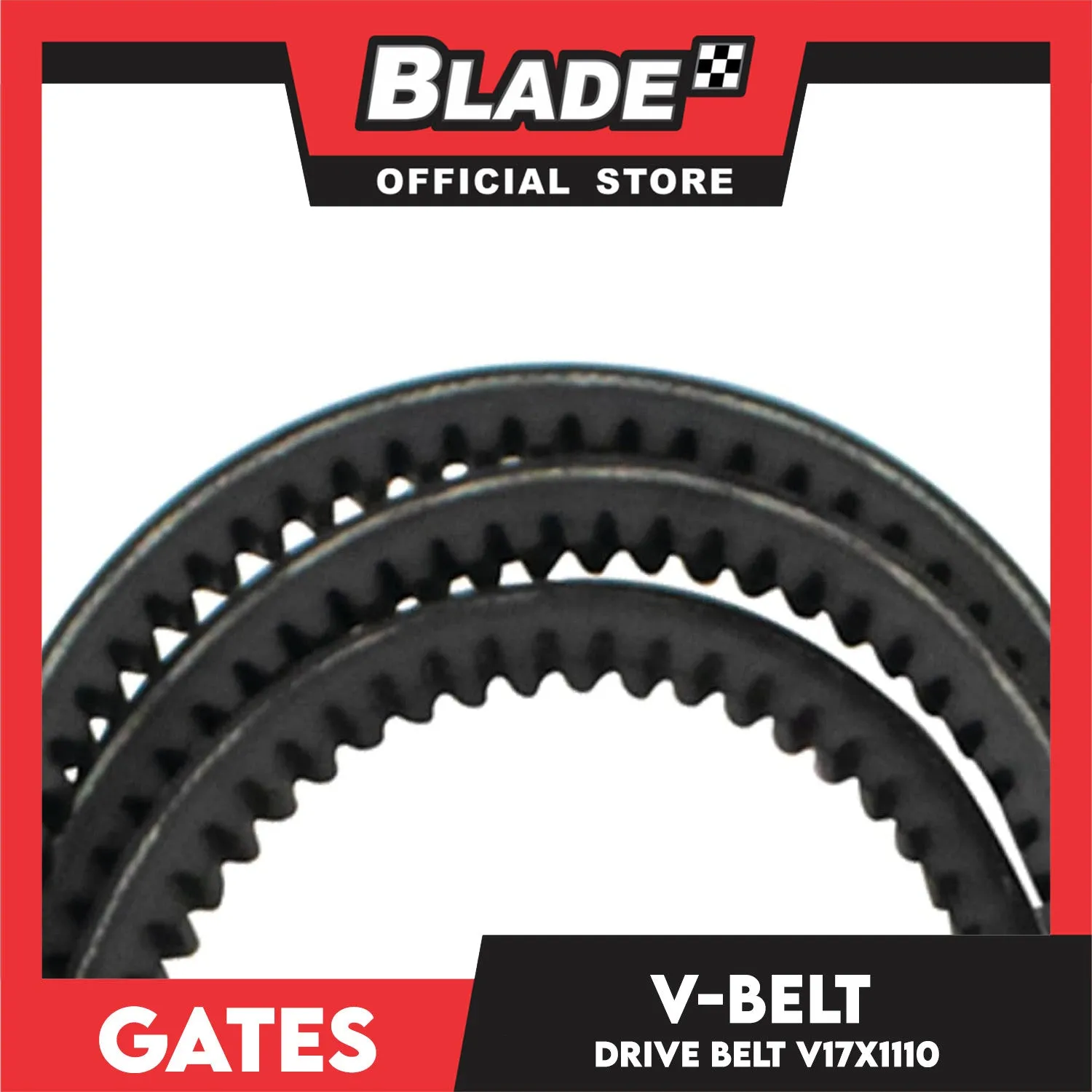

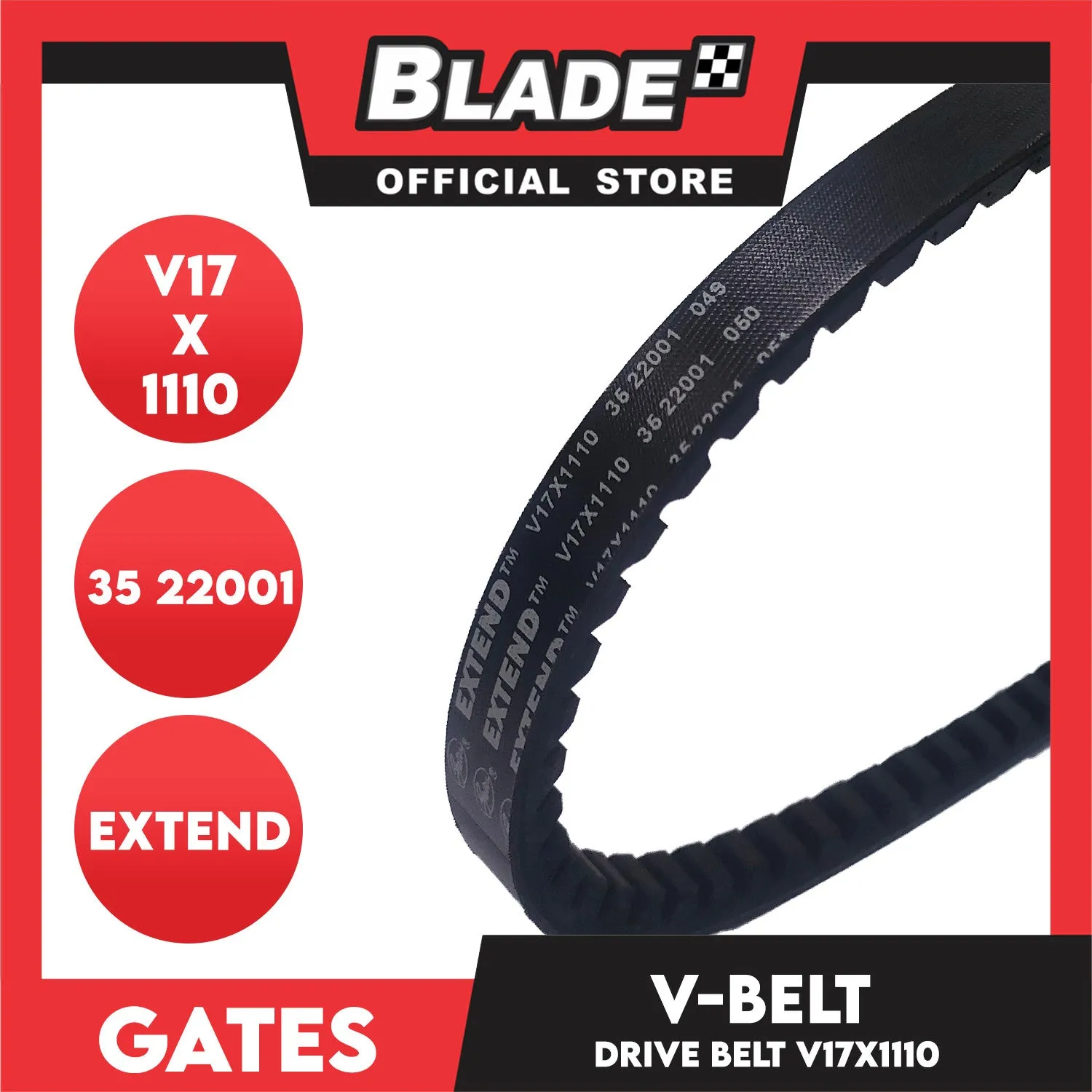

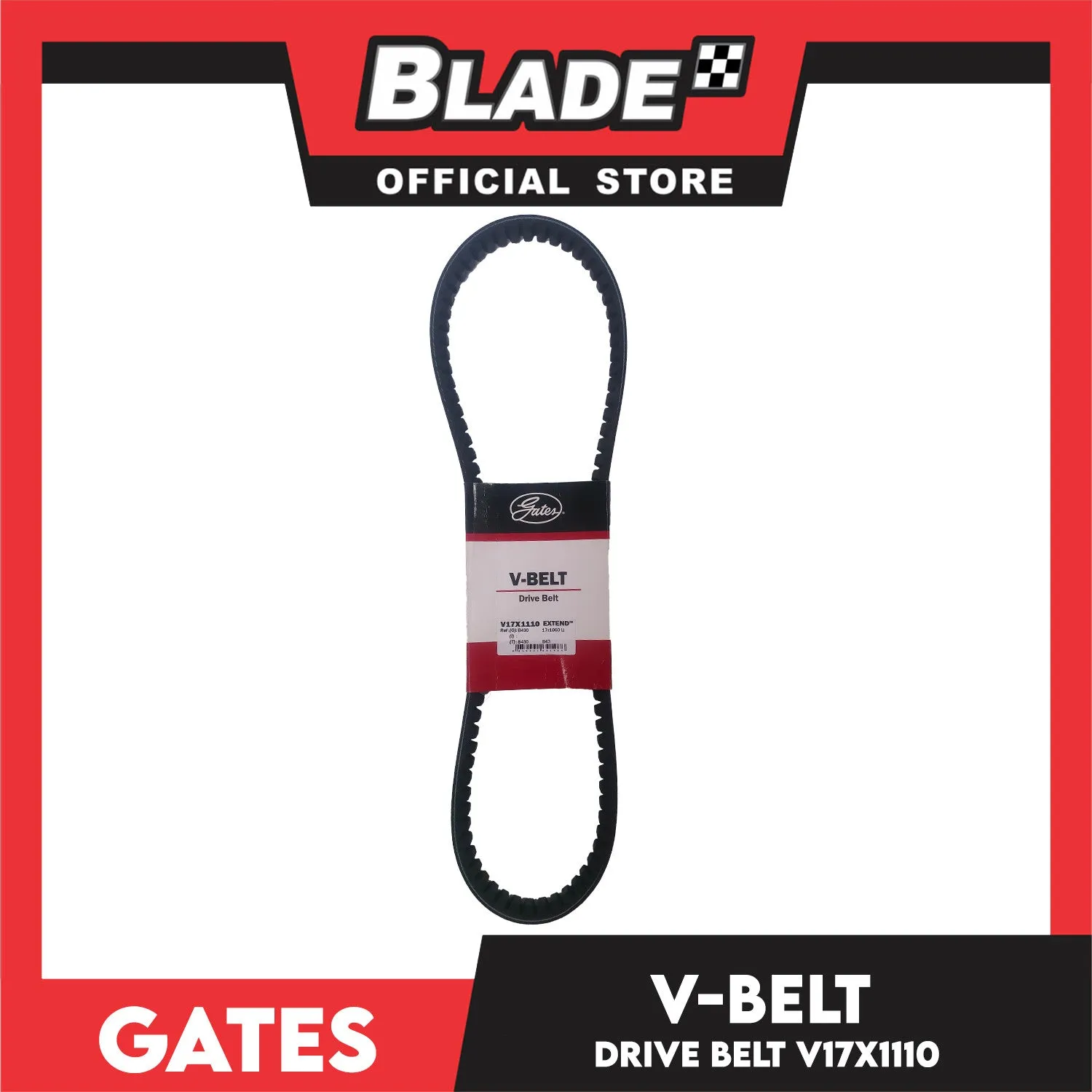

• V-Belt Extend
• Part No: V17X1110
• Material: Polychloropren (neoprene)
• Colour: Black
• Width (mm): 17
• Length (mm): 1110
• Outer Length (mm): 1118
• Rotation angle (°): 36
• Qty: 1pc



• Fibre loaded rubber material provides excellent heat and wear resistance.
• Molded notch construction provides reduced bending stresses around small pulleys.
• Form grinding provides a smooth contact point between the belt surface and the pulleys.



• Suitable with:
• HYUNDAI
• GRACE
•  Diesel 2.5L/55KW 2.5 D D4BA Rear-Wheel Drive Bus (07/93-06/94)



• H100
•  Diesel 2.5L/59KW 2.5 D D4BF A1 Rear-Wheel Drive Platform/Chassis (05/96-12/97)
•  Diesel 2.5L/57KW 2.5 D D4BA Rear-Wheel Drive Van (07/94-04/04)
•  Diesel 2.5L/57KW 2.5 D D4BA P Rear-Wheel Drive Bus (12/94-03/00)



• PORTER
•  Diesel 2.6L/61KW 2.6 TD D4BB Rear-Wheel Drive Platform/Chassis (01/01-12/04)
•  Diesel 2.5L/57KW 2.5 TD D4BA Rear-Wheel Drive Platform/Chassis (07/94-04/04)
•  Diesel 2.6L/63KW 2.6 TD D4BB Rear-Wheel Drive Platform/Chassis (07/94-04/04)



• MITSUBISHI
• PAJERO
•  Diesel 2.3L/62KW 2.3 TD (L043G, L048G) 4D55-T L04_G,L14_G,NA,NB,NC,ND,NE,NF,NG All-wheel Drive Closed Off-Road Vehicle (12/82-04/86)



• TOYOTA
• LAND CRUISER
•  Diesel 4L/100KW 4.0 Turbo-D (HJ61_V, HJ61) 12HT _J6_ All-wheel Drive Closed Off-Road Vehicle (10/85-12/89)



1. Caution:
2. Before any service work on the belt is begun to be sure that the motor or engine is switched off and cannot be started.



• Important:
• Check for worn tensioners and idler pulleys. This is the best time to replace these part these parts if needed.



• Belt Removal:

1. Loosen adjustment or pivot bolts.
2. Move adjustment unit to minimum position.
3. Remove belt.



• Belt Installation:

1. Place new belt looseley on pulleys. Do not pry onto pulleys.
2. Tension belt according to manufacturer's instruction.
3. Run drive 5 minutes and retension. Belts must be tight enough to prevent slippingwhen drive is fully loaded.



• Reminders :
