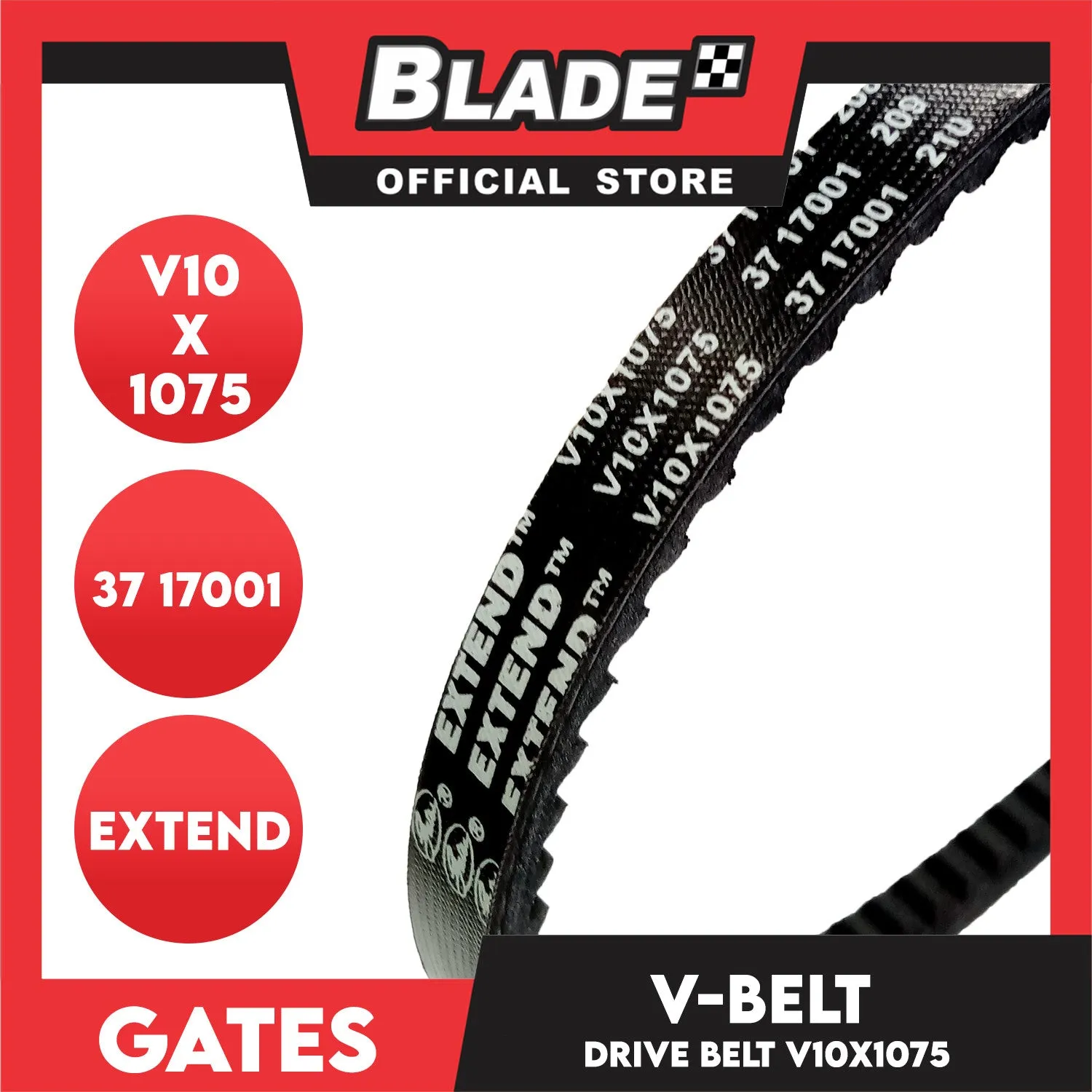

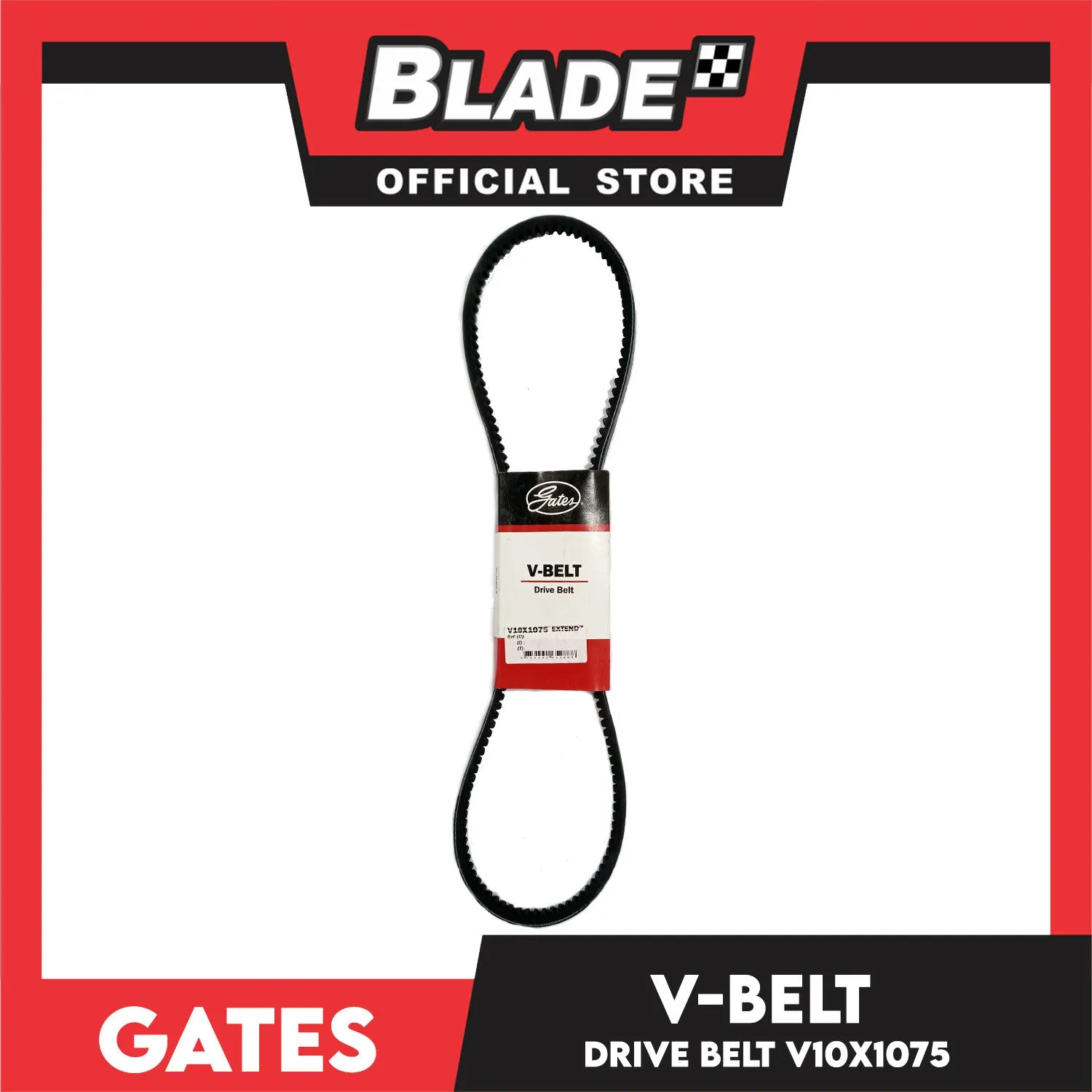

• V-Belt Extend
• Part No: V10X1075
• Material: Polychloropren (neoprene)
• Colour: Black
• Width (mm): 10
• Length (mm): 1075
• Outer Length (mm): 1083
• Rotation angle (°): 36
• Qty: 1pc



• Fibre loaded rubber material provides excellent heat and wear resistance.

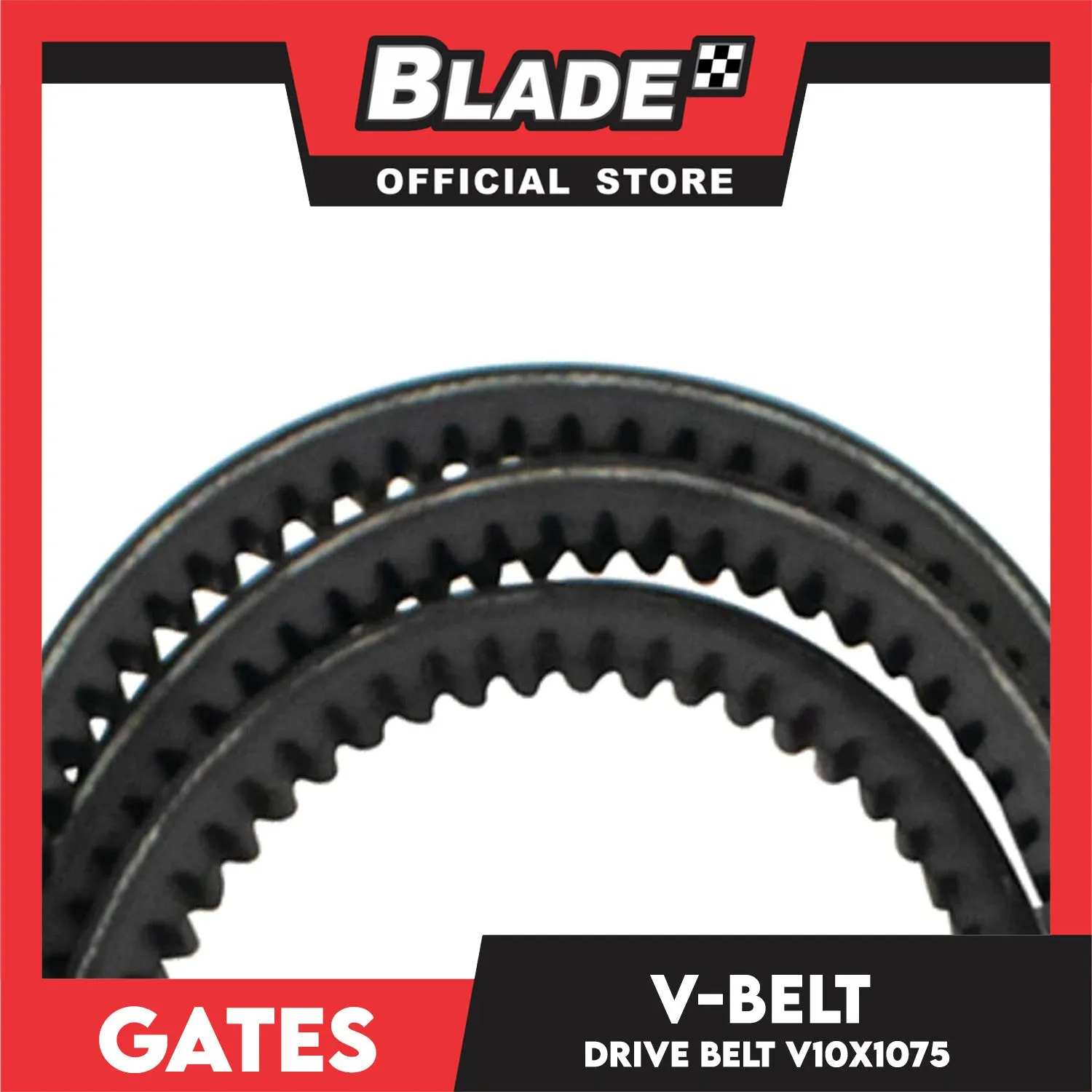

• Molded notch construction provides reduced bending stresses around small pulleys.
• Form grinding provides a smooth contact point between the belt surface and the pulleys.



• Suitable with:
• HYUNDAI H100
•  Diesel 2.6L/58KW 2.6 D D4BB HR Rear-Wheel Drive Platform/Chassis (01/04-on)
•  Diesel 2.5L/74KW 2.5 TD 4D56-T HR Rear-Wheel Drive Platform/Chassis (11/06-on)



• KIA PREGIO
•  Diesel 2.5L/69KW 2.5 D D4BH Rear-Wheel Drive Bus (08/95-09/04)
•  Diesel 2.5L/69KW 2.5 TCi D D4BH TB Rear-Wheel Drive Van (09/02-on)



• MITSUBISHI
• G-WAGON
•  Diesel 2.5L/98KW 2.5 TD (K94W) 4D56-T K7_,K9_,PA All-wheel Drive Closed Off-Road Vehicle (08/03-on)



• L200
•  Diesel 2.5L/55KW 2.5 D (K64T) 4D56 (8V) K34T,K5_T,K6_T,K7_T,MK,MK Rear-Wheel Drive Ute (06/96-12/07)
•  Diesel 2.5L/73KW 2.5 TD 4WD (K74T) 4D56-TD K34T,K5_T,K6_T,K7_T,MK,MK All-wheel Drive Ute (06/96-12/07)
•  Diesel 2.5L/66KW 2.5 TD (K64T) 4D56-T K34T,K5_T,K6_T,K7_T,MK,MK Rear-Wheel Drive Ute (08/01-11/05)
•  Diesel 2.5L/85KW 2.5 TD 4WD (K74T) 4D56-T K34T,K5_T,K6_T,K7_T,MK,MK All-wheel Drive Ute (09/01-12/07)



• L200 / STORM
•  Diesel 2.5L/89KW 2.5 DI-D 4x4 (K74T) 4D56-T K34T,K5_T,K6_T,K7_T,MK,MK All-wheel Drive Ute (01/04-12/07)



• L300
•  Diesel 2.5L/52KW 2.5 (L039P) 4D56 (8V) L03_P Rear-Wheel Drive Platform/Chassis (01/05-06/07)



• MONTERO SPORT
•  Diesel 2.5L/73KW 2.5 TD (K94W) 4D56-T K7_,K9_,PA All-wheel Drive Closed Off-Road Vehicle (11/98-on)



• STRADA
•  Diesel 2.5L/100KW 2.5 DI-D (KA4T) 4D56-HP KA_T,KB_T,ML,ML,MN,MN Rear-Wheel Drive Ute (11/05-12/15)



• ROVER 800
•  Petrol 2.7L/124KW 827 24V I/SI Cat (RS) C 27 A1 XS Front-Wheel Drive Hatchback (01/92-02/99)
•  Petrol 2.7L/124KW 827 SI/Sterling Catalytic-Conv (XS) C 27 A1 XS Front-Wheel Drive Sedan (02/88-02/99)
•  Petrol 2.7L/130KW 827 SI/Sterling (XS) C 27 A2 XS Front-Wheel Drive Sedan (02/88-12/91)
•  Petrol 2.7L/124KW 827 Vitesse Catalytic-Conv (XS) C 27 A1 XS Front-Wheel Drive Hatchback (10/88-12/91)
•  Petrol 2.7L/130KW 827 Vitesse/SLI C 27 A2 XS Front-Wheel Drive Hatchback (10/88-12/91)



• TOYOTA TERCEL
•  Petrol 1.3L/48KW 1.3 (AL20, AL11) 2A _L1_,_L2_ Front-Wheel Drive Hatchback (03/79-01/88)
•  Petrol 1.3L/48KW 1.3 (AL20_) 2A AL1_,AL2_ Front-Wheel Drive Sedan (03/79-10/85)
•  Petrol 1.5L/52KW 1.5 (AL25) 3A AL2_ All-wheel Drive Wagon (08/82-12/88)



• VOLKSWAGEN TRANSPORTER
•  Petrol 2.5L/81KW 2.5 AEU,AAF,AEN,ACU 70B,70C,70J,70K,7DB,7DC,7DJ,7DK Front-Wheel Drive Bus (09/90-06/03)
•  Diesel 2.4L/57KW 2.4 D Syncro AAB 70B,70C,70J,70K,7DB,7DC,7DJ,7DK All-wheel Drive Bus (10/92-09/98)



• Caution:
• Before any service work on the belt is begun to be sure that the motor or engine is switched off and cannot be started.



• Important:
• Check for worn tensioners and idler pulleys. This is the best time to replace these part these parts if needed.



• Belt Removal:
• Loosen adjustment or pivot bolts.
• Move adjustment unit to minimum position.
• Remove belt.



• Belt Installation:
• Place new belt looseley on pulleys. Do not pry onto pulleys.
• Tension belt according to manufacturer's instruction.
• Run drive 5 minutes and retension. Belts must be tight enough to prevent slippingwhen drive is fully loaded.



• Reminders :
