OVERVIEW

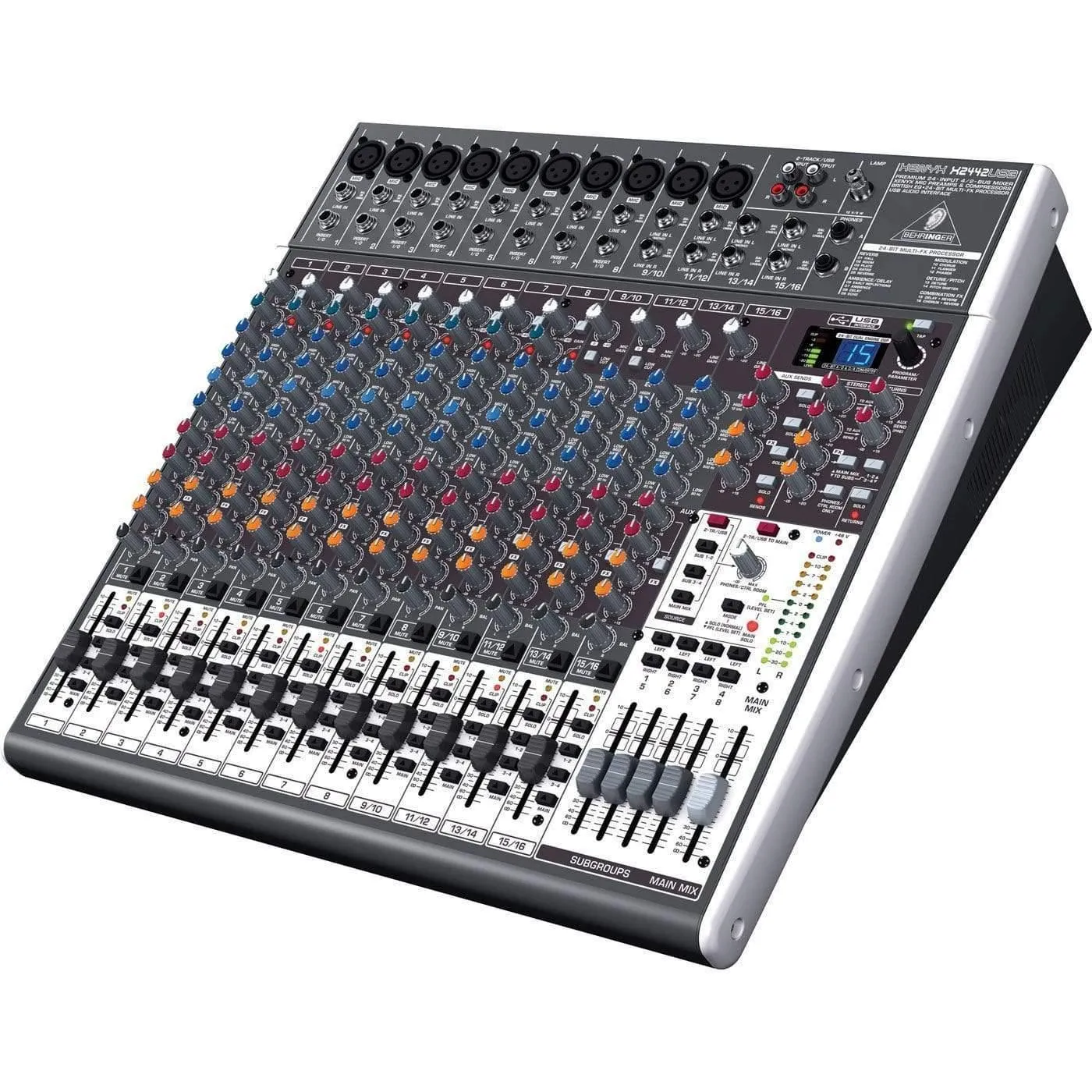

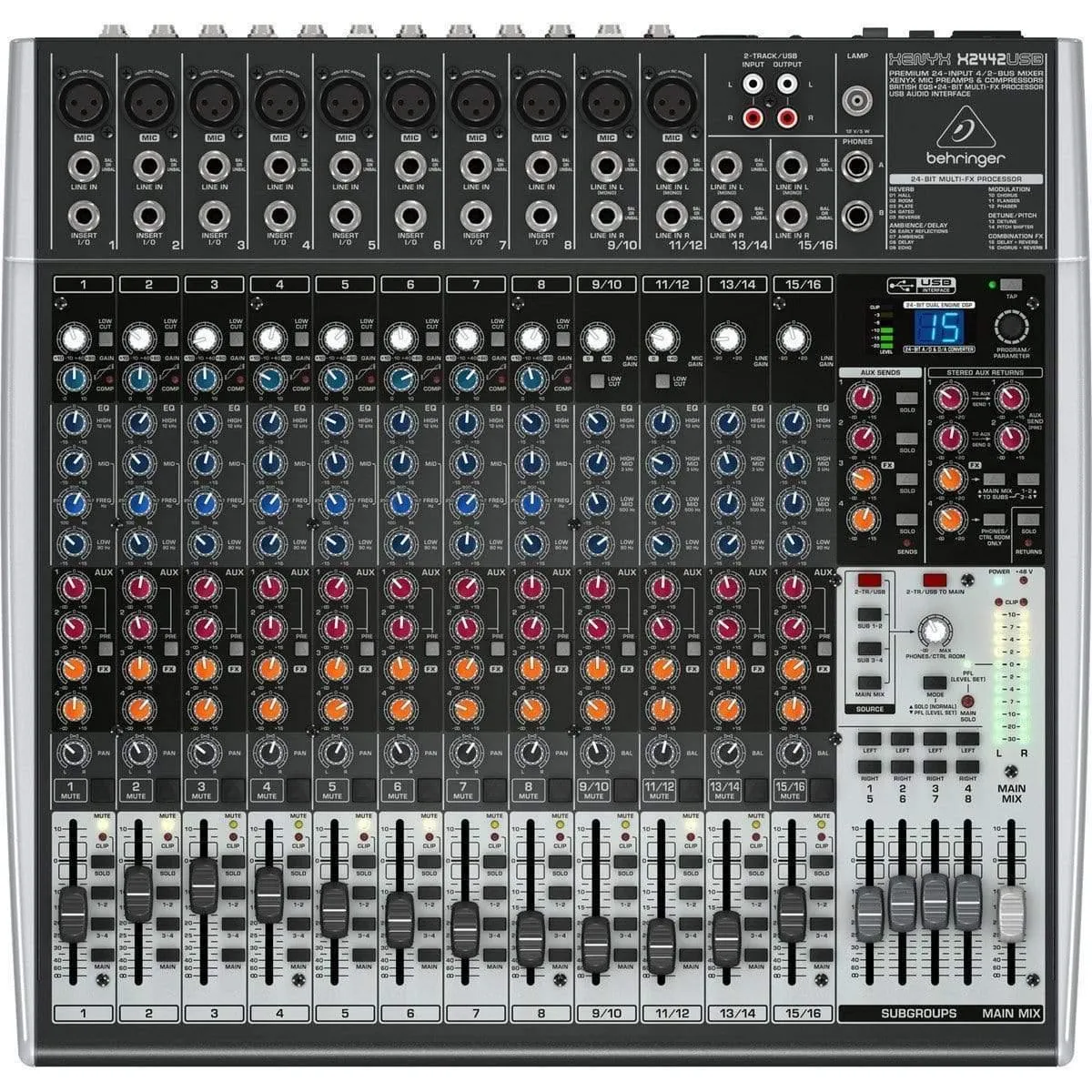

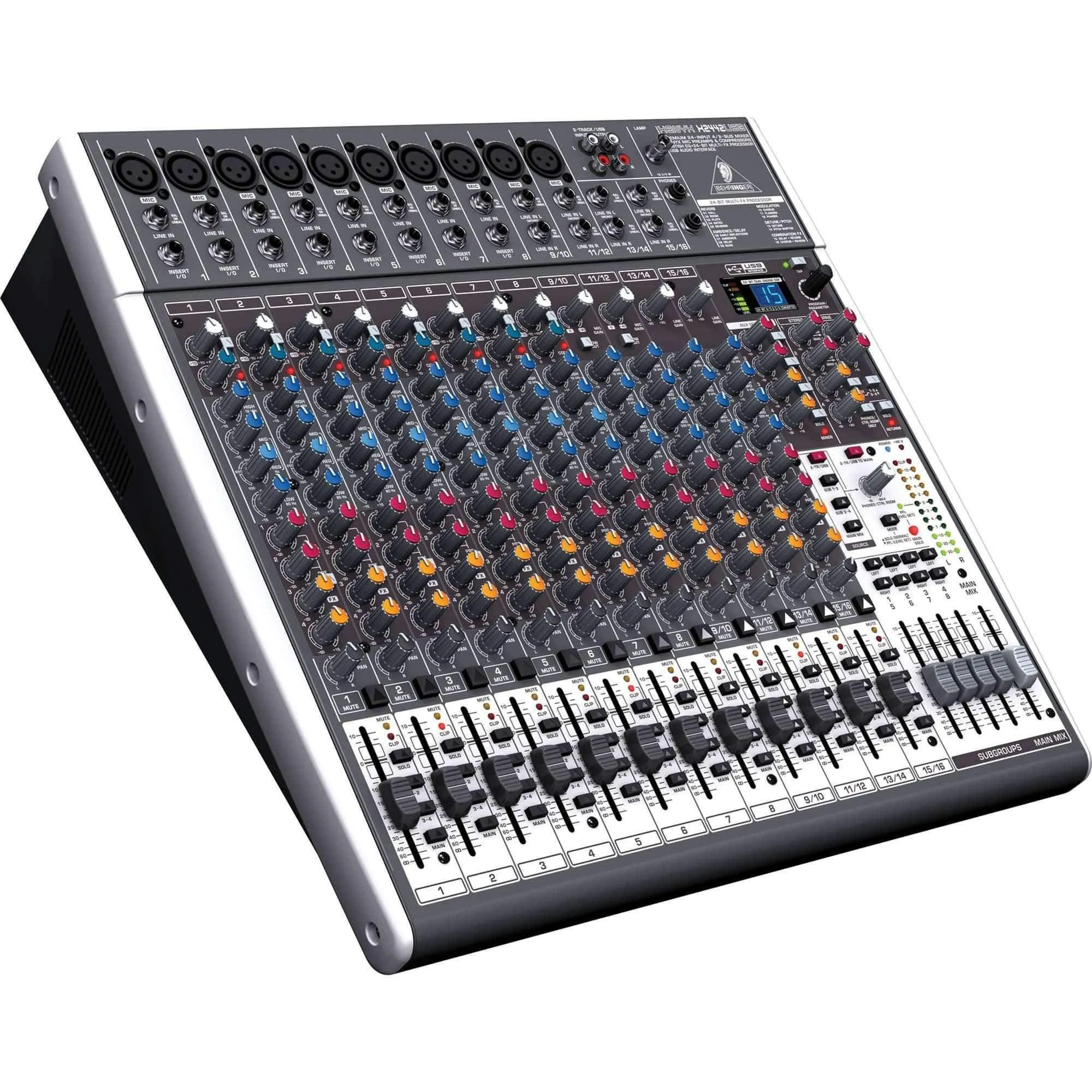

The feature-packed XENYX X2442USB mixer allows you to effortlessly achieve premium-quality sound thanks to 10 onboard studio-grade XENYX Mic Preamps and ultra-musical British channel EQs with a semi-parametric mid band for the maximum flexibility in sound sculpting. And our easy-to-use one-knob compressors provide total dynamic control for the ultimate in punch and clarity while respecting all the power and emotion you pack into every note. Add to this our 24-bit, dual-engine Multi-FX processor with 16 editable, professional-grade presets including reverb, chorus, flanger, delay, pitch shifter, and multi-effects and the X2442USB becomes an incredibly versatile mixer for your live performances. But the X2442USB wasn't just designed to handle your live gigs; it also provides the state-of-the-art tools you need to make stunning, professional-quality recordings. Along with the built-in USB/audio interface, the XENYX X2442USB comes with all the recording and editing software needed to turn your computer system into a complete, high-performance home recording studio.
FEATURES
-
Premium ultra-low noise, high headroom analog mixer
-
10 state-of-the-art, phantom-powered XENYX Mic Preamps comparable to stand-alone boutique preamps
-
8 studio-grade compressors with super-easy "one-knob" functionality and control LED for professional vocal and instrumental sound
-
Neo-classic "British" 3-band EQs with semi-parametric mid band for warm and musical sound
-
Studio-grade FX processor with 16 editable presets including reverb, chorus, flanger, delay, pitch shifter, multi-effects, Tap function and storable user parameter settings
-
Built-in stereo USB/Audio Interface to connect directly to your computer. Free audio recording, editing and podcasting software plus 150 instrument/effect plug-ins and ultra-low latency driver downloadable at www.behringer.com
-

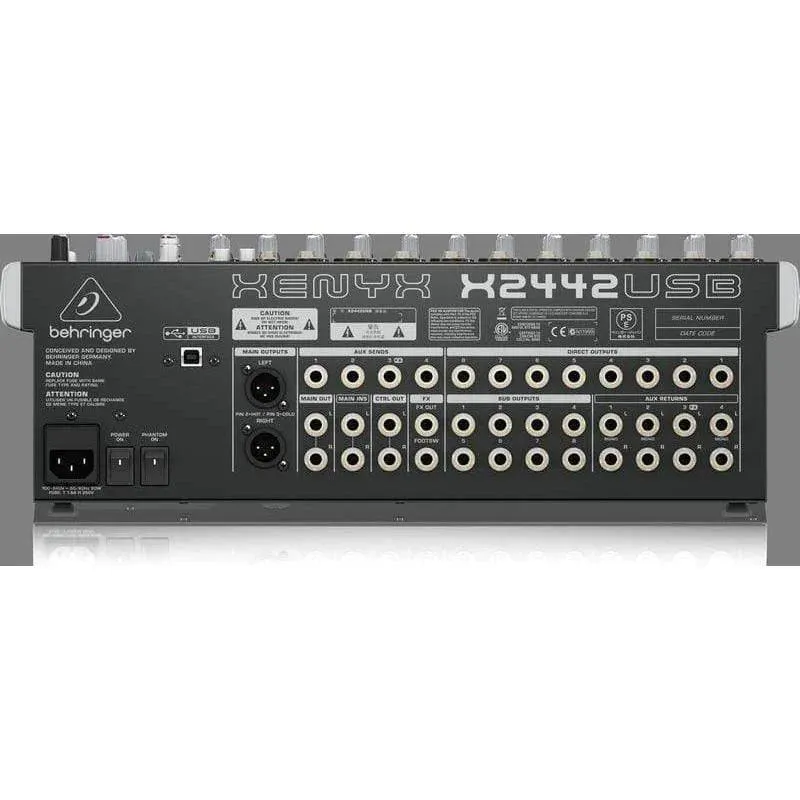

Channel inserts and direct outputs on each mono channel plus main mix inserts for flexible connection of outboard equipment
-
4 aux sends per channel: 2 pre/post fader switchable for monitoring/FX applications, 2 post fader (for internal FX or as external send)
-
Clip LEDs, mute, main mix and subgroup routing switches, solo and PFL functions on all channels
SPECIFICATIONS
| Type | Analog |
| Weight | 5.9 Kg |
| Aux Sends | 2 x Pre/Post, 2 x Post |
| Brand | Behringer |
| Bus Powered | Yes |
| Busses/Groups | 4 x Groups |
| Channels | 12 |
| Computer Connectivity | USB (2 x 2) |
| Dimensions | (H x W x D) 5.375" x 16.5" x 17.25" |
| Effects | Yes |
| EQ Bands | 3-band, sweepable mid |
| Faders | 17 x 60mm throw |
| Headphones: | 1 x 1/4" |
| Inputs - Line | 16 x TRS, 2 x RCA |
| Inputs - Mic Preamps: | 10 x XLR |
| Inputs/Outputs - Other | Output 2 x TRS (CR) |
| Manufacturer Part Number : | X2442USB |
| Outputs - Direct | 8 direct outs (Channel 1-8) |
| Outputs - Main | 2 x XLR, 2 x TRS |
| Phantom Powered | 8 |
| Rack Mountable | Yes |
| Send/Return I/O: | 4 x TRS/3 x stereo |
| USB | 1 x Type B |
